플랜지커플링 관련 문의
페이지 정보
작성자 김상복 (203.♡.145.133) 작성일24-01-05 12:59 조회2,146회 댓글3건관련링크
본문

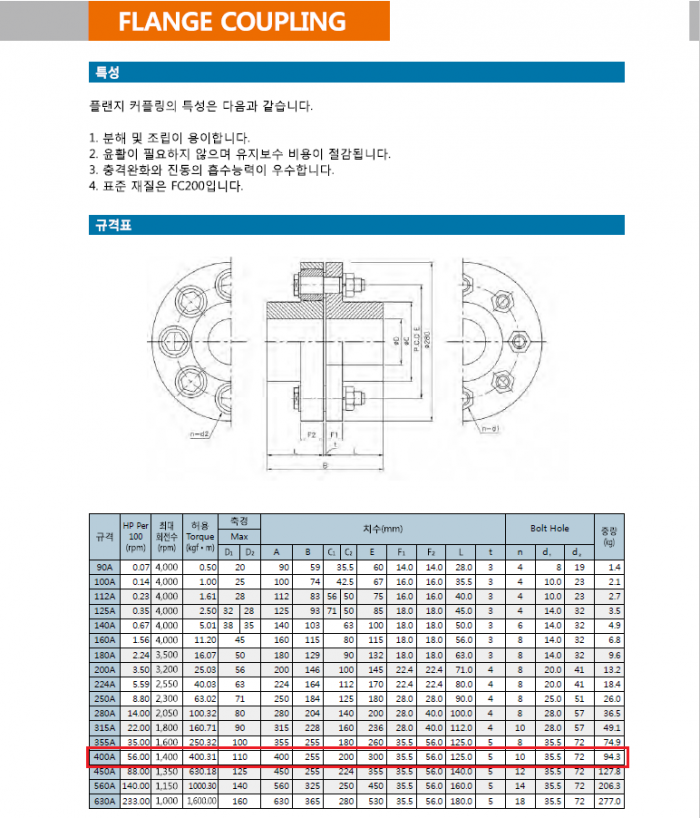

당사에서 사용중인 교반 목적 설비에 귀사의 플랜지커플링 400A 규격품을 사용중에 있습니다. (유첨파일 참조)
설비 스펙적으로 문의드리고 싶은 사항이 있습니다.
1. 플랜지커플링에서 설비 가동중 허용되는 오차범위 또는 각도는??
-. 교반설비 특성상 내부에 제품이 재중된 상태에서 회전을 하다보면 샤프트는 조금씩 휨이 발생됩니다.
-. 구조해석 결과, 샤프트 중앙부의 처짐량을 바탕으로 샤프트 끝단에 연결된 플랜지커플링도 미세한 휨이 발생될텐데,
개념적으로 본다면 부쉬가 이를 충분히 잡아줄만큼 미세하긴 합니다만, 플랜지커플링이 허용하는 값을 수치적으로 알고싶습니다.
-. 최초 셋팅시에는 다이얼게이지를 통해서 1/100 수준만큼 최대한 균일하게 셋팅해놓고 가동합니다.
-. 물론 샤프트가 조금씩 변형이 될 경우, 부쉬가 마모되긴 하곘으나 가동에 문제 없는 수준까지의 수치를 알고싶습니다.
기타 커플링은 허용 오차 및 허용각에 대한 수치가 표현되어있는데, 해당 커플링은 찾을 수가 없어서 문의드립니다.
댓글목록
관리자님의 댓글
관리자 아이피 14.♡.34.216 작성일
반갑습니다.
플랜지 커플링의 경우에는 사용하시는 회전수에 따라 얼라이먼트 값이 다릅니다
2000rpm 이상 - 편심, 편각 0.05mm 이내
500~2000rpm - 편심, 편각 0.1mm 이내
50~500rpm - 편심, 편각 0.15mm 이내
50rpm 이하 - 편심, 편각 0.2mm 이내로 맞추시면 됩니다
