FEATURE

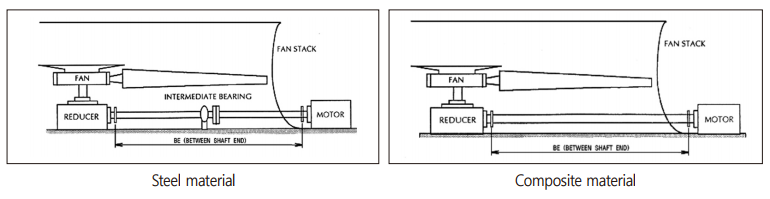

The composite coupling transterring the power installed between the motor and reducer of the cooling tower fan is as follows;
1. It weighs up to 80% lighter than general steel coupling because of composite material.
2. Therefore, this makes it easier to install and does not require a separate bearing device even though it is a
long shaft.
3. Rotational characteristics are guaranteed through balancing tests according to ISO1940-1, 6.3 grade.

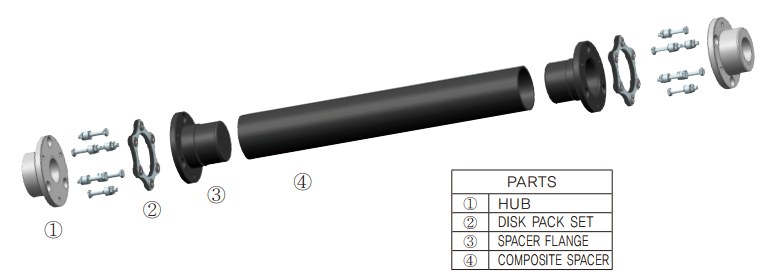

STRUCTURE
