FEATURE
1. Muff coupling is simplest rigid structure with two halves part of the cast iron, CGD450. It makes easy to
assemble and disassemble the coupling without changing the position of the shaft.
2. It consists of a hollow cylinder type whose inner diameter(“D”) is the same as shaft and standard keyway based
on KS, JIS.
3. The basic structure transmits the torque according to strong friction force by inserting a key at the clamp.
4. The standard material is FCD450.

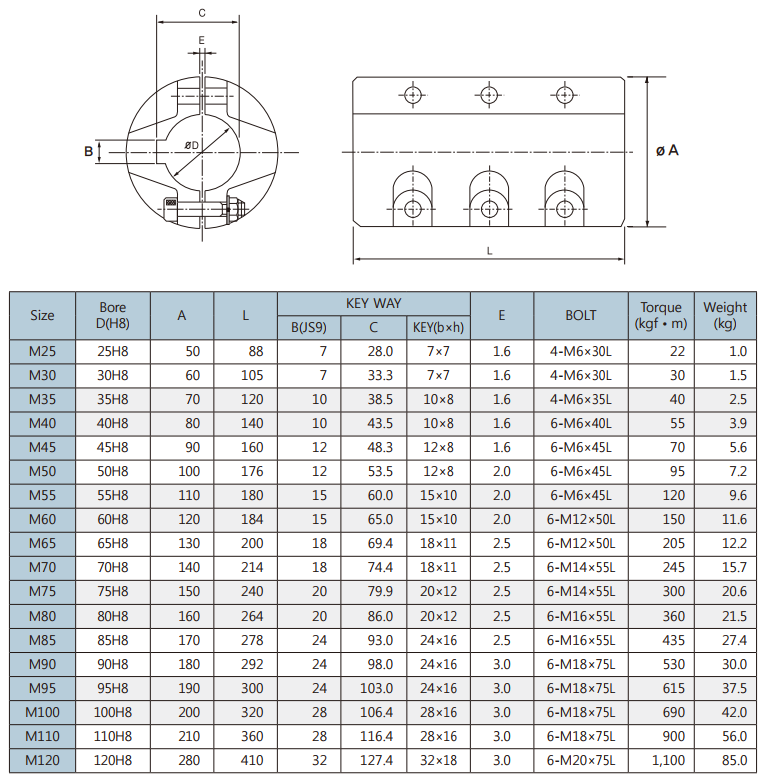

DIMENSION
