FEATURE
1. Excellent flexibility – Rubber element
1) It has superior torque shock absorption and torsion damping during power transmission.
2) It can reduce noise much better than other coupling.

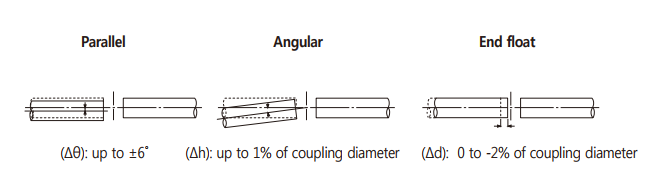

3) It can cover various range of misalignment as below.
2. Simple structure: It is easy to assemble and disassemble, so this allows couplings to be replaced in short time.
3. No lubrication is required and cost effective for its maintenance.
4. Electrical Insulation is allowed between shafts.

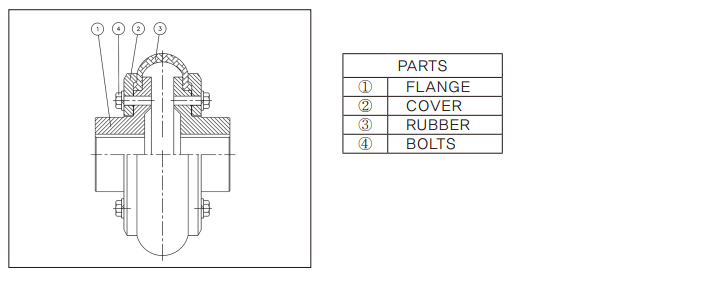

STRUCTURE
